  • Dimension (H x W x D) : 365 x 175 x 410 mm
  • Motherboard Support : Micro ATX, ATX

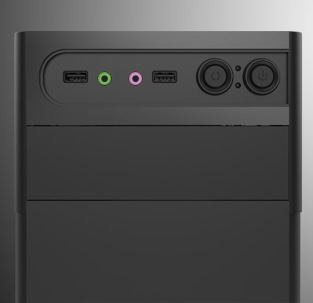

  • I/O Port : USB x 2 , HD Audio x1
  • Drive Bays : 5.25” ODD x 1,3.5” HDD x 2,2.5” SSD x 3
  • Fan Support (Optional): Front : 2 x 120 mm ,Rear : 1 x 80 mm,Side : 1 x 120 mm

2

3

SPECIFICATION
Case Type MID Tower
Motherboard Support ATX, Micro-ATX
Color Black
Expansion Slots 7
Material SPCC & ABS
Window N/A
Radiator Support N/A
Fan Support Front: 2 x 120mm
Rear: 1 x 80mm
Side 1 x 120mm
Pre-installed Fans N/A
Drive Bays 1 x 5.25"
2 x 3.5"
2 x 2.5"
I/O Port USB x2, USB 3.0 x1, HD Audio x1
PSU Top, Standard ATX PSU
Clearance CPU cooler height limitation: 160mm
VGA length limitation: 300mm
PSU length limitation: 170mm
Dimension (H x W x D) 365 x 175 x 410 mm
Net Weight TBD
